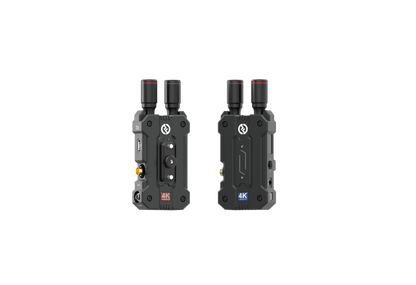

Hollyland Mars 4K Wireless Video Transmission System
Hollyland Mars 4K Wireless Video Transmission System
UPC: 191460002816
SKU: MARS 4K
FEATURES:

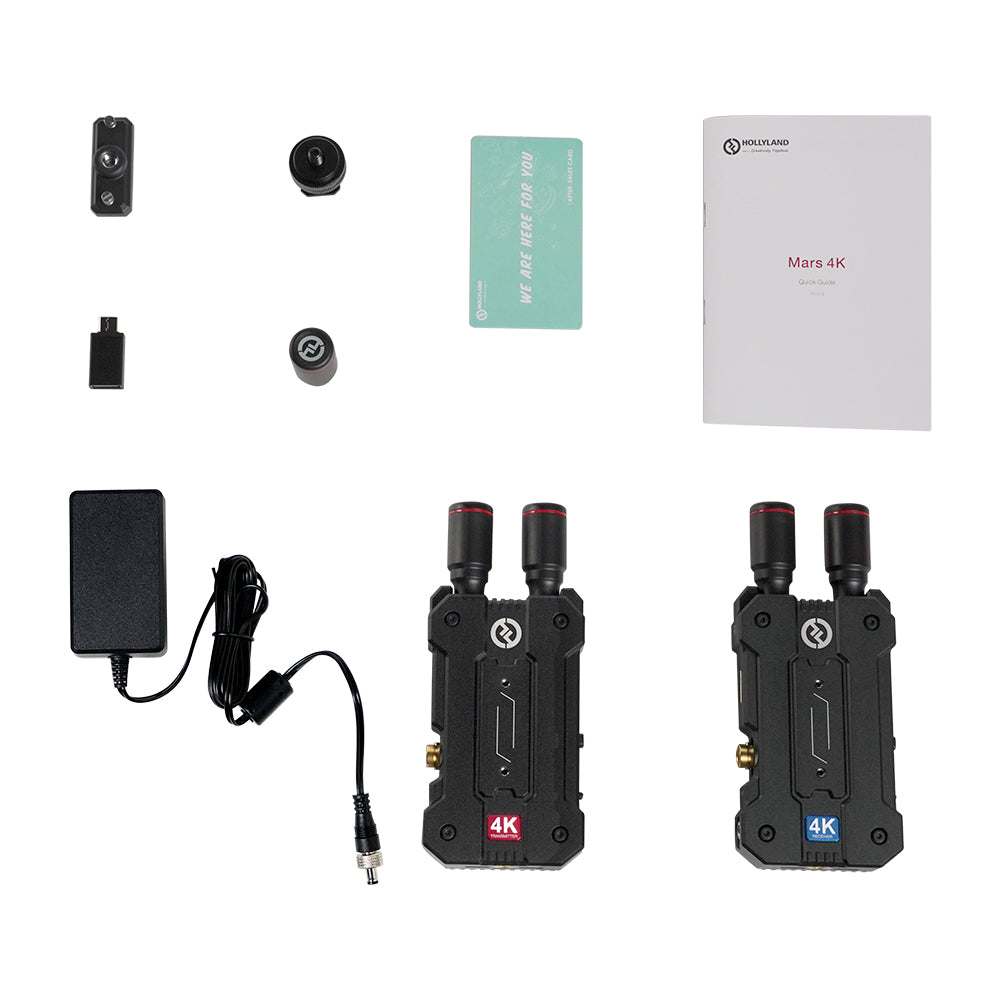

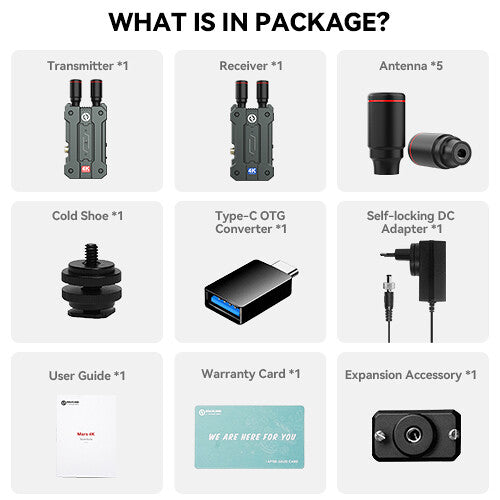

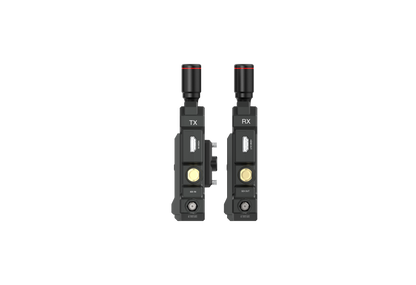

- Transmitter and Receiver Set
- Transmit up to UHD 4K30 Video up to 450'
- SDI & HDMI Inputs & Outputs
- L-Series Battery/USB Type-C/DC Power
- Smart Channel Scanning, Touchscreen LCD
- Low 0.06s Latency, 12 Mb/s Data Rate
- DC, L-Series & USB Type-C Power Options
- Transmits to up to 4 x Apps as Monitor
The new Hollyland Mars 4K wireless video transmission system is capable of a 450ft (150m) LOS range and ultra-low latency of 0.06s.
4K UHD Video Transmission
The Mars 4K supports 4K UHD video transmission at 30fps for the discerning videographer looking for high-resolution production capability.
*The Mars 4K also supports FHD and HD formats at varying frame rates–24p, 30p, and 60p.

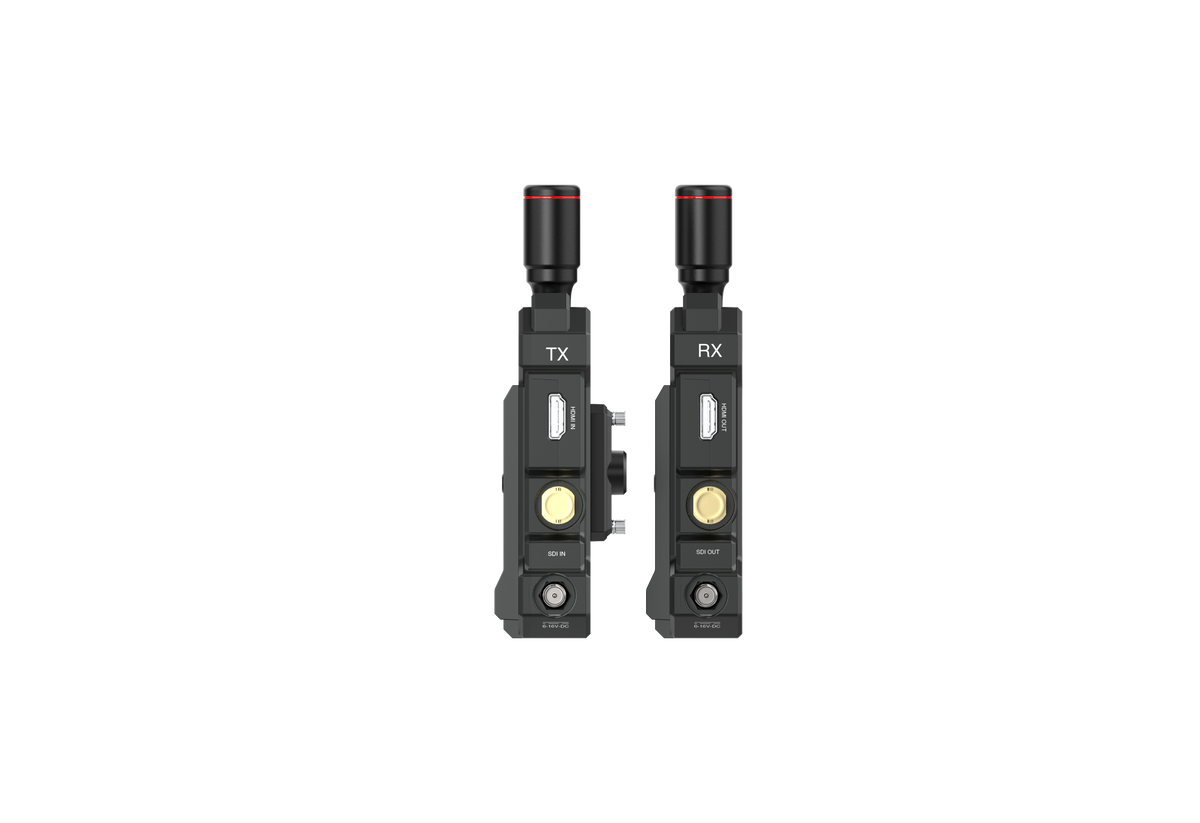

HDMI & SDI Dual Interfaces
supports HDMI and SDI input and output for expanded connectivity and compatibility. The SDI provides expanded frame rate flexibility for both broadcast and production frame rate (decimal-point frame rate) standards and compatibility through production and postproduction.
Flexible Monitoring Options
The Mars 4K transmitter is compatible with up to two receivers or four mobile devices with the app installed. Up to four mobile devices with the app installed allow a maximum of four parties (such as the director, producer, light control personnel, and audio personnel) on the site to monitor the shooting at the same time.
SPECS:
| Antenna I/O |
Transmitter/Receiver: 2x RP-SMA Female
|
| Video I/O |
Transmitter: 1x HDMI Input
Transmitter: 1x BNC Input Receiver: 1x HDMI Output Receiver: 1x HDMI Output |
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
No
|
| Power I/O |
Transmitter/Receiver: 1x Coax Input
Transmitter/Receiver: 1x USB-C Input |
| Encryption |
No
|
| Wireless Range |
450' / 137.2 m (Line-of-Sight)
|
| Channel Bandwidth |
20 MHz
|
| Frequency Range |
US: 5.1 to 5.8 GHz
|
| Latency |
0.06 ms
|
| RF Power |
21 dBm
|
| RF Sensitivity |
-90 dBm
|
| Wi-Fi |
Wi-Fi 4 (802.11n)
|
| Bluetooth |
No
|
| Mobile App Compatible |
Yes
|
| Cellular Support |
No
|
| Video Format |
HDMI
UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50 SDI 1080p: 60/59.94/30/29.97/24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 |
| Audio Format |
Not Specified by Manufacturer
|
| Timecode Support |
Yes
|
| DC Input Power |
6 to 16 VDC
|
| Mounting |
1x 1/4"-20 Female
|
| Environmental Protection |
No
|
| Operating Temperature |
14 to 140°F / -10 to 60°C
|
| Storage Temperature |
-40 to 140°F / -40 to 60°C
|
| Dimensions |
Transmitter/Receiver: 4.5 x 2.6 x 1.3" / 115 x 65 x 32 mm
|
| Package Weight |
2.41 lb
|
| Box Dimensions (LxWxH) |
10.7 x 7.4 x 2.6"
|
