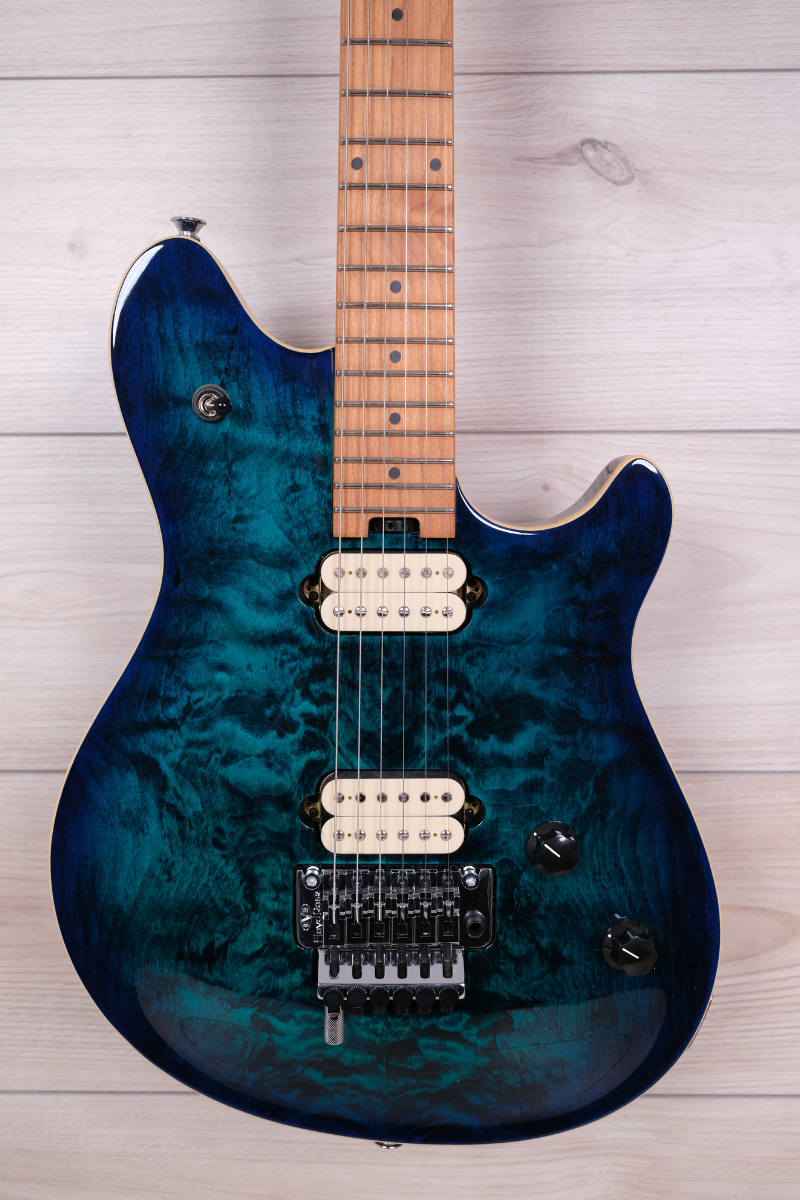

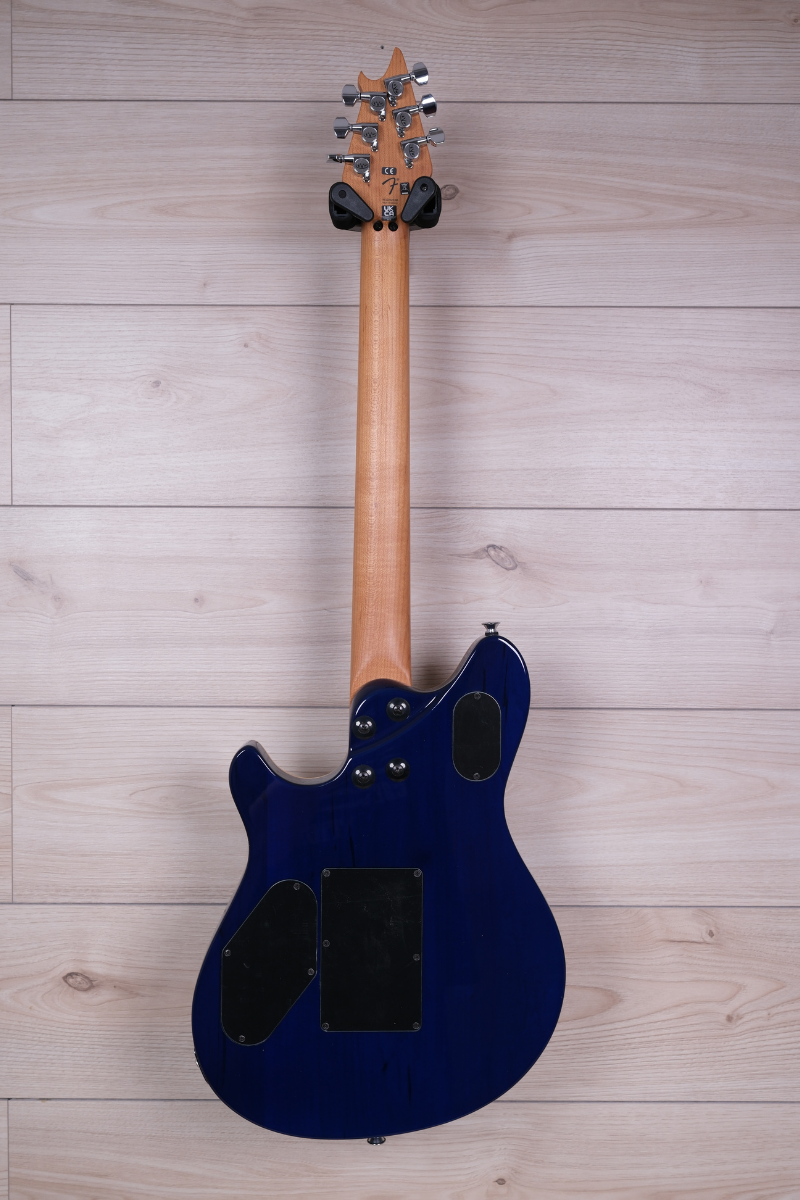

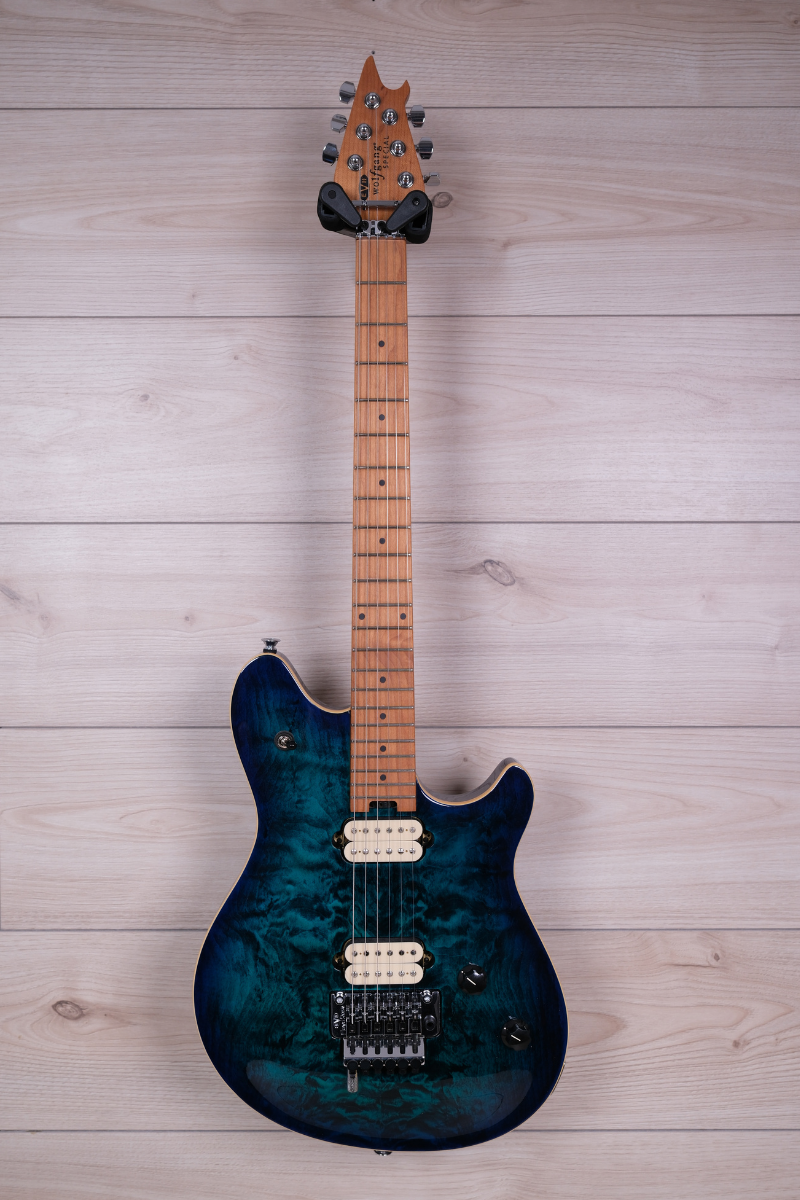

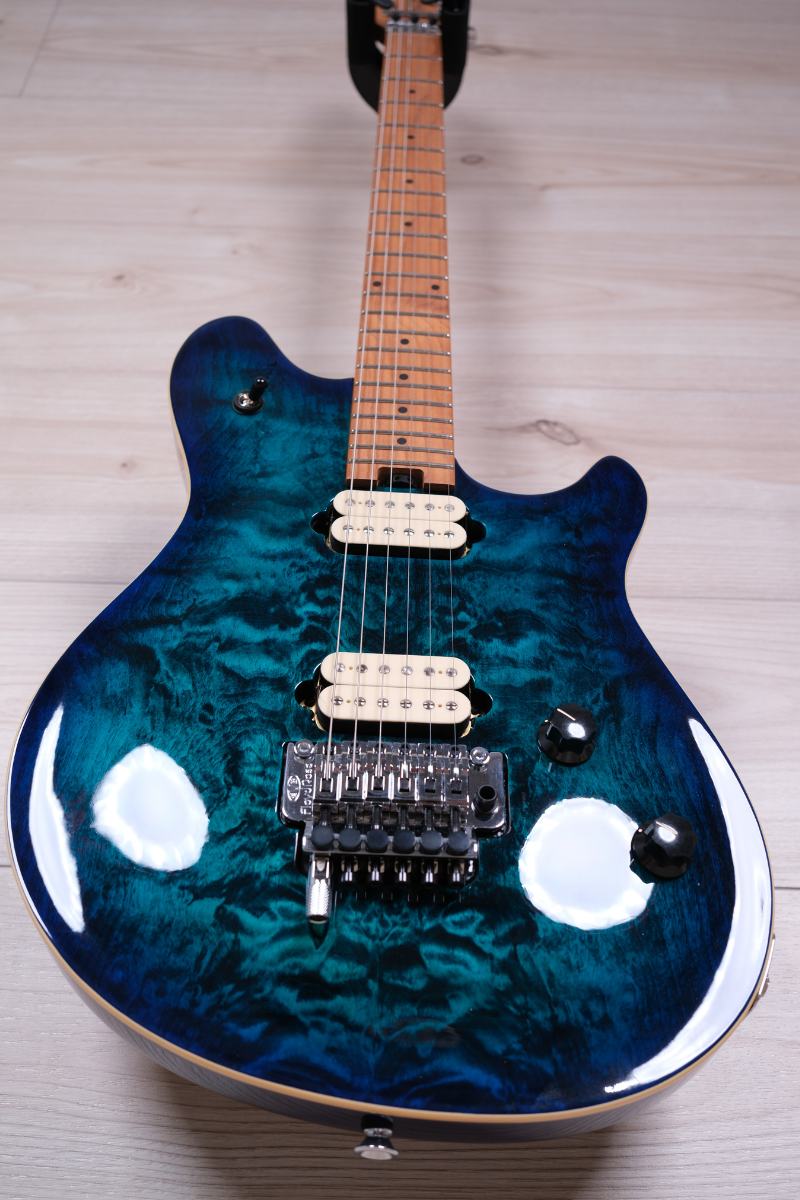

EVH Wolfgang Special QM, Baked Maple Fingerboard, Chlorine Burst

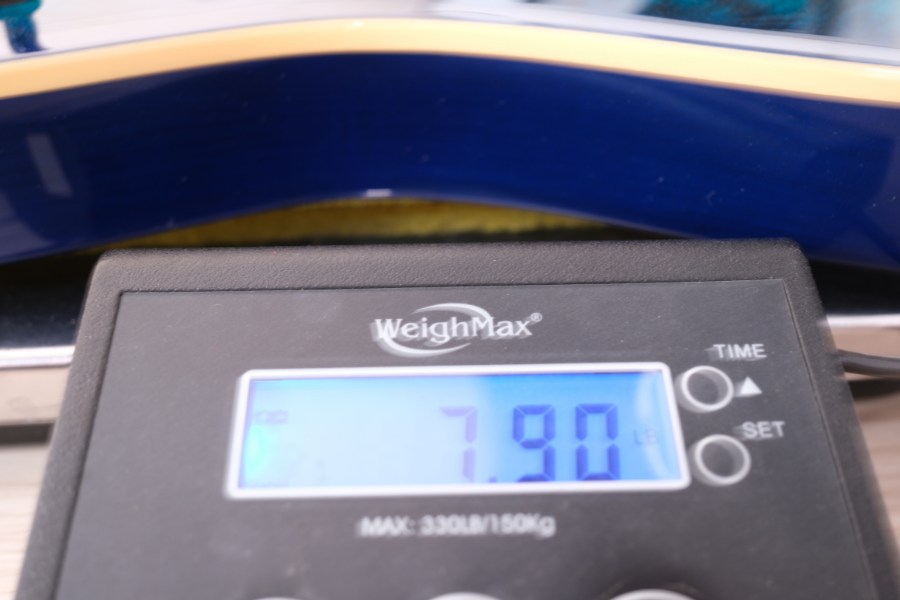

Weight: 7.90 Lbs
SKU: 5107701599
UPC: 885978725243

Road-tested in arenas around the world, the Wolfgang® Special is a purebred music-making machine, designed with stunning style, giant sound and high-speed playability.

The Wolfgang Special QM features a basswood body with an arched quilt maple top and a robust graphite-reinforced bolt-on quartersawn baked maple neck. The neck is carved and rolled to Eddie Van Halen's exacting specifications and features a hand-rubbed satin urethane finish on the back. Primed for high performance, energetic riffing and blazing leads, the 12"-16" compound radius baked maple fingerboard has 22 jumbo frets and black dot inlays. Truss rod adjustments have also never been easier thanks to a spoke wheel conveniently located at the base of the neck.

• 25.5" scale length

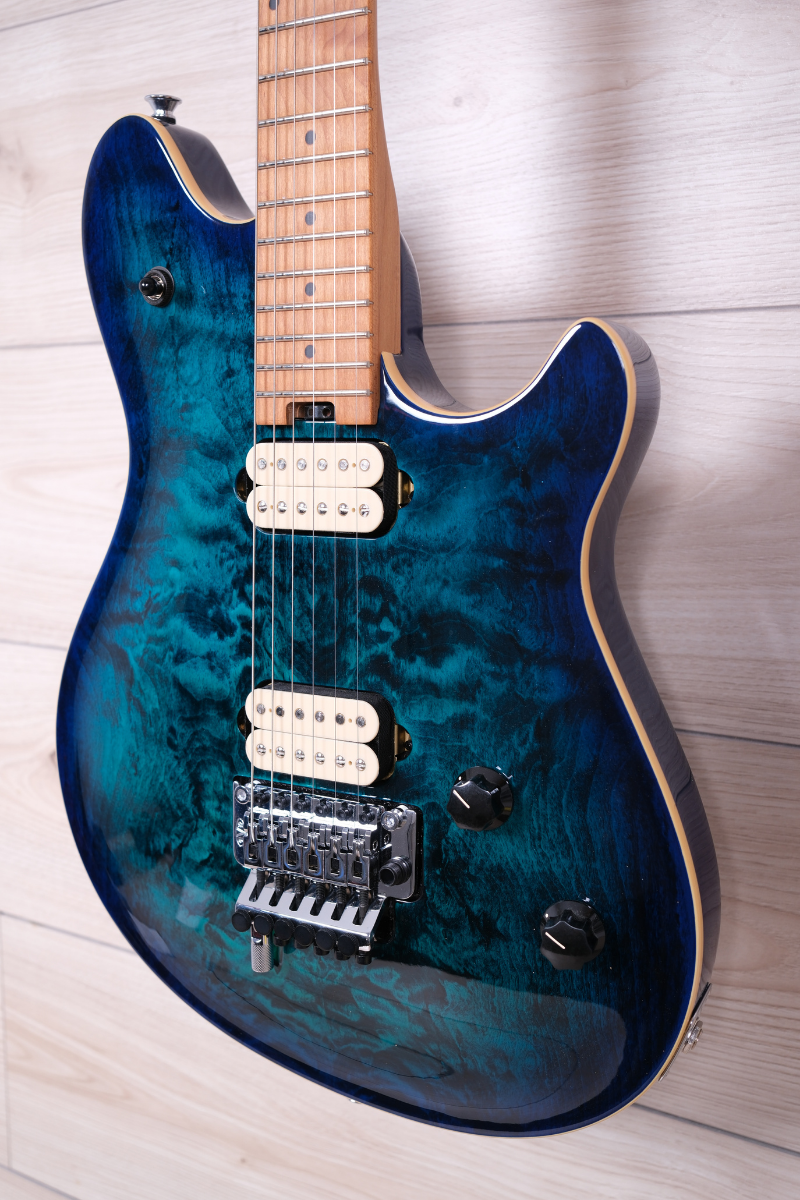

• Basswood body with arched quilt maple top
• Graphite-reinforced bolt-on quartersawn baked maple neck
• Neck is carved and rolled to Eddie Van Halen's specifications with a hand-rubbed satin urethane finish on the back

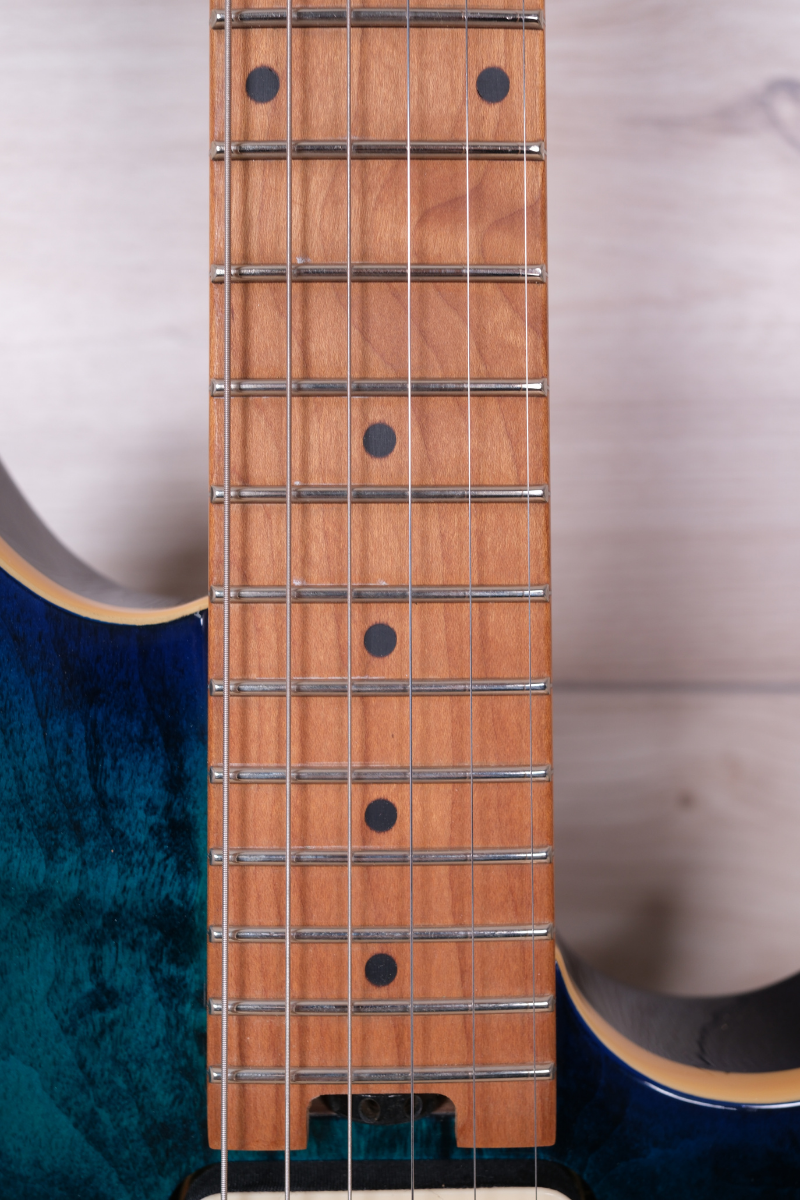

• 12"-16" compound radius baked maple fingerboard with 22 jumbo frets and black dot inlays

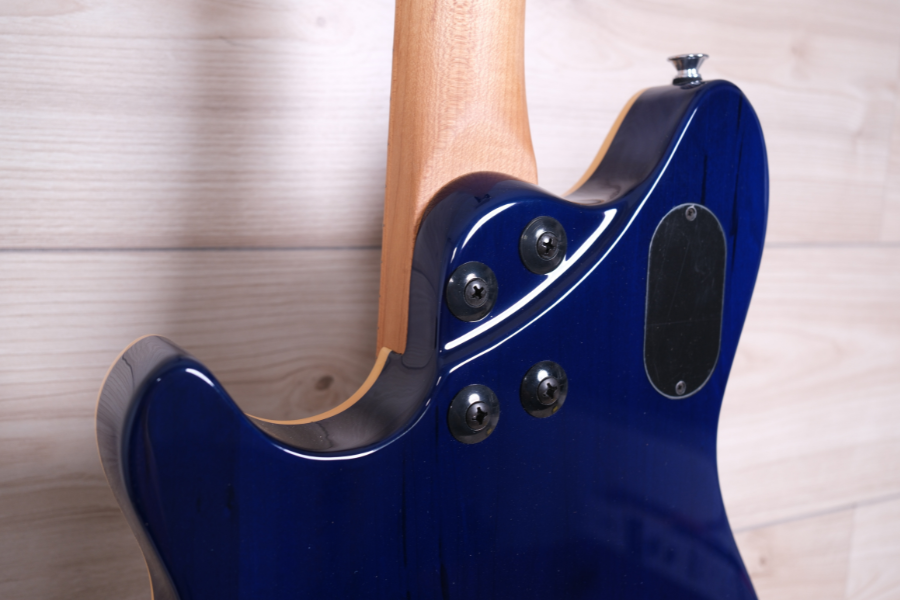

• Convenient heel-mount truss rod adjustment spoke wheel
• Direct mount EVH® Wolfgang® Alnico 2 bridge and neck humbucking pickups
• EVH-branded Floyd Rose® locking trem and R2 locking nut
• EVH D-Tuna®
• Three-way toggle switch, EVH volume control (500K EVH Bourns® Low Friction Pot) with treble bleed circuit and tone control (250K EVH Bourns® High Friction Pot)
• Available in Solar with cream body binding and chrome hardware

SPECS:

Neck

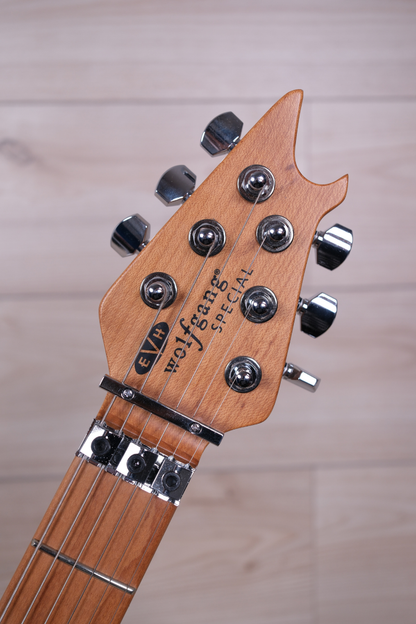

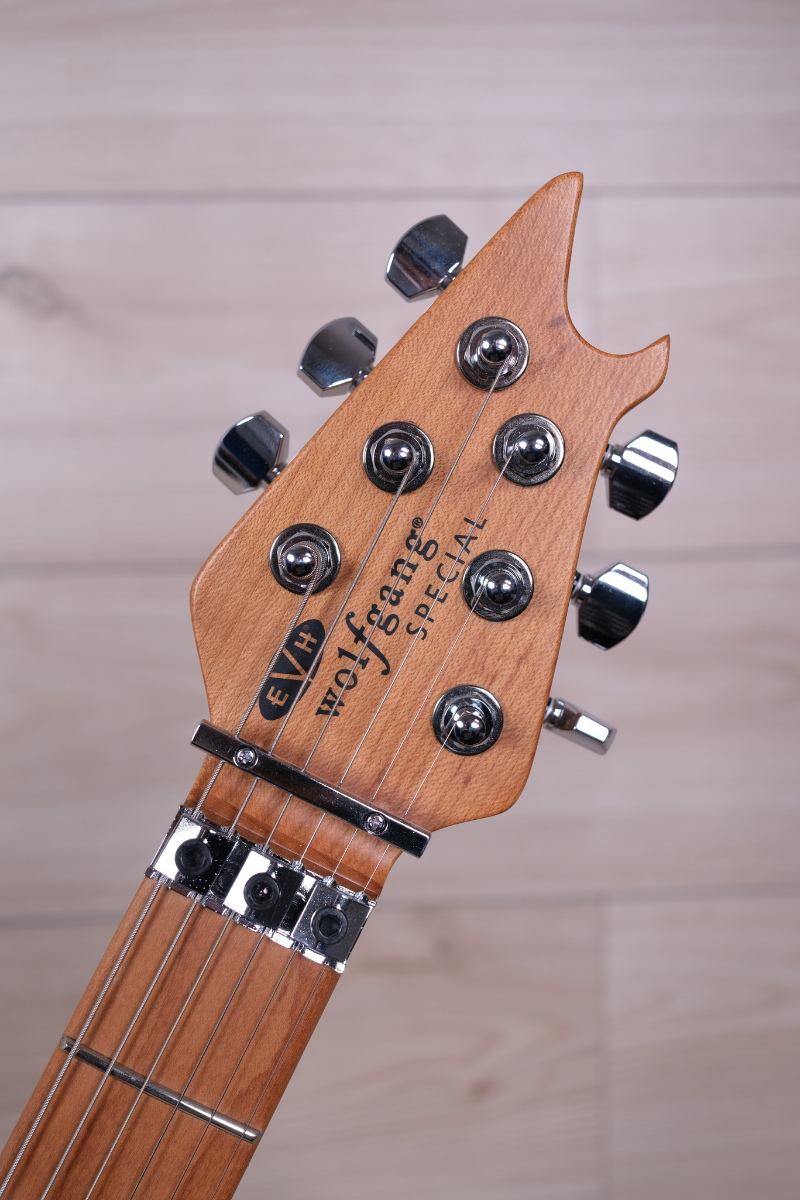

• Headstock: EVH® Wolfgang®

• Neck Material: Quartersawn Baked Maple

• Neck Finish: Hand-Rubbed Satin Urethane

• Neck Shape: Wolfgang® Backshape

• Neck Construction: Bolt-On with Graphite Reinforcement

• Neck Thickness: .805" at 3rd & .890" at 12th Fret

• Fingerboard Radius: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)

• Fingerboard Material: Baked Maple

• Position Inlays: Black Dot

• Side Dots: Black

• Number of Frets: 22

• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel

• String Nut: Floyd Rose® R2 Locking

• Nut Width: 1.625" (41.3 mm)

• Nut Material: Floyd Rose® R2 Locking

• Fret Size: Jumbo

• Scale Length: 25.5" (648 mm)

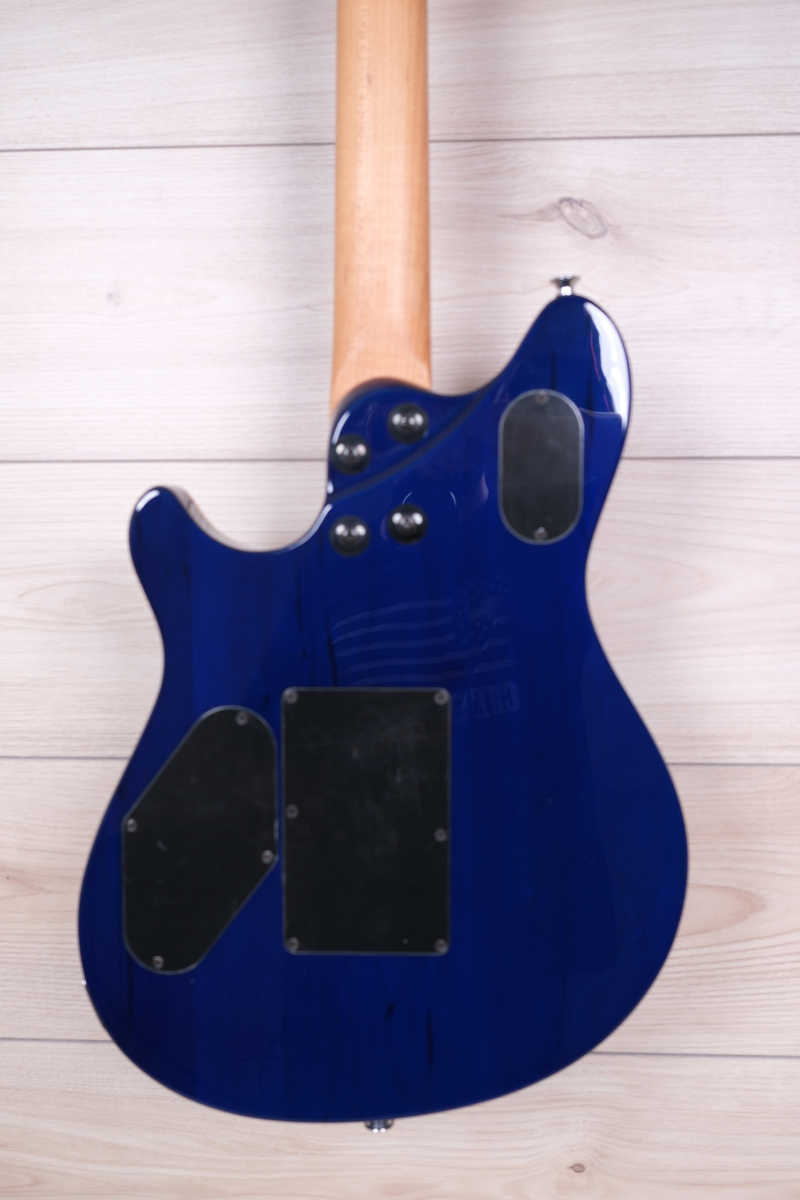

Body

• Body: Basswood

• Body Finish: Gloss Urethane

• Body Shape: Wolfgang®
• Body Top: Arched Quilt Maple

• Body Binding: 1-Ply Cream

• Body Material: Basswood

Hardware

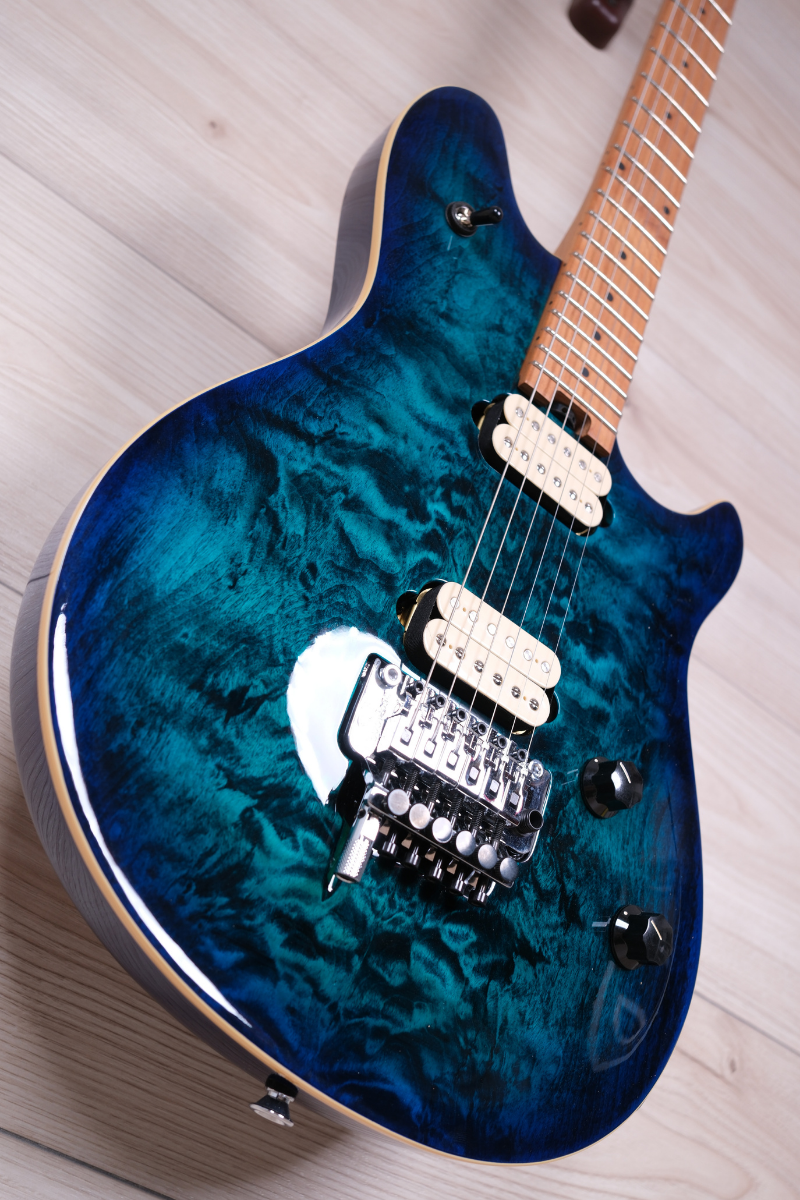

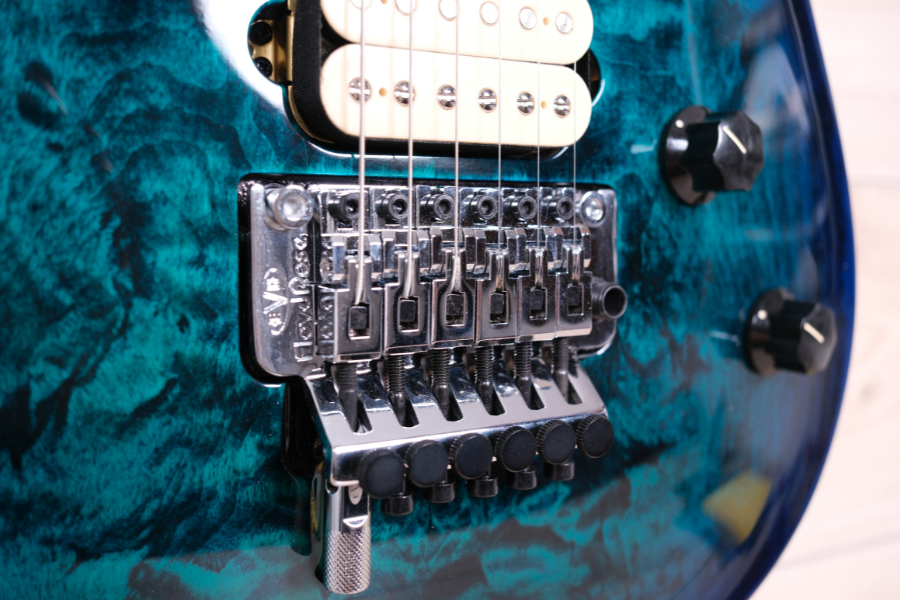

• Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®

• Tremolo Block: Brass

• Pickup Covers: Parchment

• Control Knobs: Black Plastic with White Indicator

• Hardware Finish: Chrome

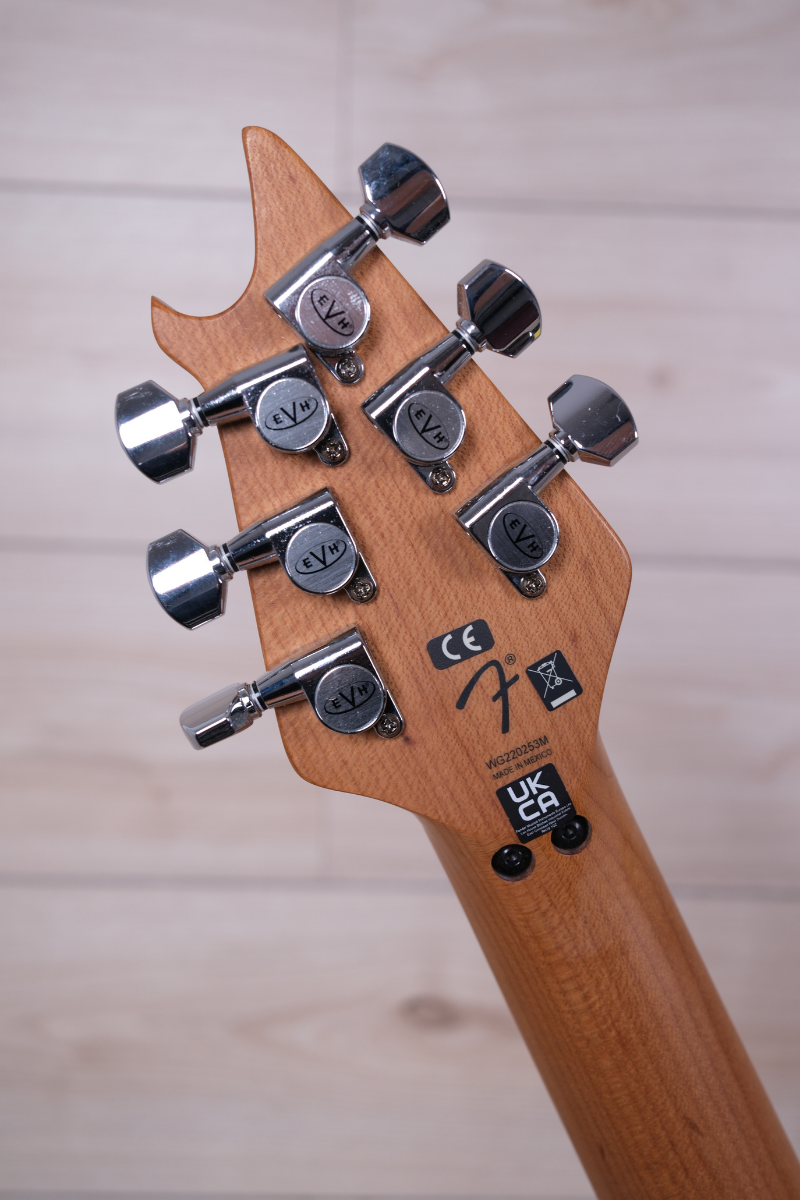

• Tuning Machines: EVH®-Branded Gotoh®

• String Trees: Floyd Rose® Retainer Bar

• Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)

• Tremolo Arm: Floyd Rose® 1000 Series Locking

• Strap Buttons: Oversized


Electronics

• Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking

• Neck Pickup: Direct Mount EVH® Wolfgang® Humbucking

• Pickup Configuration: HH

• Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)

• Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
